            J41W stainless steel globe valve

            J41W stainless steel globe valve
            • sell:021-32051999
            • sell:021-32050777
            • fax:021-66099555

            Details

            • Product Introduction
            • Service Promise
            • Ordering Process

            The stem axis of the J41W stainless steel flange valve is perpendicular to the sealing surface of the valve seat. Stem opening or closing stroke is relatively short, and has a very reliable cut-off action, making this valve is very suitable for medium cut-off or adjustment and throttling use.


            Features of stainless steel globe valves


            (1) the structure is simpler than the gate valve, and it is more convenient to manufacture and maintain.


            (2) Sealing surface is not easy to wear and scratch, good sealing, no relative sliding between disc and valve body sealing surface when opening and closing, so wear and scratch are not serious, sealing performance is good, long service life.


            (3) when the valve is opened and closed, the valve stroke is small, so the height of the cut-off valve is smaller than that of the gate valve, but the length of the valve is longer than that of the gate valve.


            (4) the opening and closing moment is large, the opening and closing is more laborious, and the opening and closing time is the headmaster.


            (5) fluid resistance is large, because the medium channel of the valve body is tortuous, the fluid resistance is large, and the power consumption is large.


            (6) When the nominal pressure PN is less than 16 MPa, the medium flows downstream from the bottom of the valve disc; when the nominal pressure PN is more than 20 MPa, the medium flows downstream from the top of the valve disc to increase the seal energy. When used, the medium of the shut-off valve can only flow in one direction, and the flow direction can not be changed.


            (7) the disc is always eroded at full opening.


            Design and manufacturing standards


            1, design and manufacture according to GB12235-89


            2, the length of the structure is GB12221-89


            3, flange size according to JB/G79-94


            4. Valve check and test according to GB13927


            Performance parameters of stainless steel cut-off valve


            型號
            公稱壓力
            試驗壓力
            工作溫度(℃)
            適用介質(zhì)
            強度(水)(Mpa)
            密封(水)空氣(Mpa)
            低壓密封空氣(Mpa)
            J41W-16P(R)
            1.6
            2.4
            1.8
            0.6
            ≤200
            NITRIC ACID
            J41W-25P(R)
            2.5
            3.8
            2.8
            0.6
            ≤200
            硝酸類
            ACETIC ACID
            醋酸類
            NITRIV ACID
            硝酸類
            J41W-40P(R)
            4
            6
            4.4
            0.6
            ≤200
            ACETIC ACID
            J41W-64P(R)
            6.4
            9.6
            7
            0.6
            ≤200
            醋酸類


            Stainless steel cut-off valve main parts material


            零件名稱
            ZG1Cr18Ni9Ti系列
            ZG00Cr18Ni10系列
            ZG1Cr18Ni12Mo2Ti系列
            ZG00Cr17Ni14Mo2系列
            WCB系列
            閥體/閥蓋
            ZG1Cr18Ni9Ti
            ZG00Cr18Ni10
            ZG1Cr18Ni12Mo2Ti
            ZG00Cr17Ni14Mo2
            WCB
            閥瓣
            ZG1Cr18Ni9Ti
            ZG00Cr18Ni10
            ZG1Cr18Ni12Mo2Ti
            ZG00Cr17Ni14Mo2
            1Cr13
            閥桿
            ZG1Cr18Ni9Ti
            00Cr18Ni10
            1Cr18Ni12Mo2Ti
            00Cr17Ni14Mo2
            1Cr13
            填料
            PTFE編織
            PTFE編織
            PTFE編織
            PTFE編織
            石墨
            墊片
            304+PTFE
            304L+PTFE
            316+PTFE
            316L+PTFE
            石墨+304
            壓蓋
            ZG1Cr18Ni9Ti
            ZG00Cr18Ni10
            ZG1Cr18Ni12Mo2Ti
            ZG00Cr17Ni14Mo2
            WCB
            填料壓環(huán)
            1Cr18Ni9Ti
            00Cr18Ni10
            1Cr18Ni12Mo2Ti
            00Cr17Ni14Mo2
            1Cr13
            螺栓
            1Cr17Ni2
            1Cr17Ni2
            1Cr17Ni2
            1Cr17Ni2
            35CrMoA
            螺母
            1Cr18Ni9Ti
            1Cr18Ni9Ti
            1Cr18Ni9Ti
            1Cr18Ni9Ti
            45

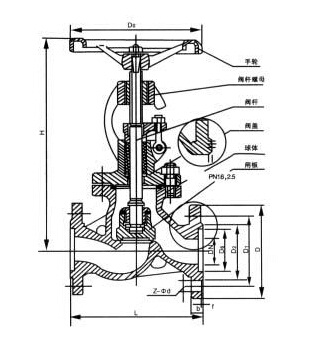

            Main dimensions of stainless steel globe valves


            J41W stainless steel globe valve -1.6MPa


            尺寸
            DN
            15
            20
            25
            32
            40
            50
            65
            80
            100
            125
            150
            200
            250
            300
            350
            400
            L
            mm
            130
            150
            160
            180
            200
            230
            290
            310
            350
            400
            480
            600
            650
            750
            850
            950
            H
            mm
            200
            243
            253
            280
            312
            321
            325
            355
            415
            460
            510
            700
            975
            1115
            1250
            1380
            W
            mm
            120
            140
            160
            160
            200
            200
            240
            240
            280
            320
            360
            560
            600
            700
            800
            900
            重量
            kg
            5
            6.5
            7
            13.5
            16
            32
            45
            60
            80
            107
            134
            268
            449
            663
            750
            1170


            J41W stainless steel globe valve -2.5MPa


            尺寸
            DN
            15
            20
            25
            32
            40
            50
            65
            80
            100
            125
            150
            200
            250
            300
            350
            400
            L
            mm
            130
            150
            160
            180
            200
            230
            290
            310
            350
            400
            480
            600
            650
            750
            850
            950
            H
            mm
            200
            243
            253
            280
            312
            321
            325
            355
            415
            460
            510
            700
            975
            1115
            1250
            1380
            W
            mm
            120
            140
            160
            160
            200
            200
            240
            240
            280
            320
            360
            560
            600
            700
            800
            900
            重量
            kg
            5
            6.5
            7
            13.5
            16
            32
            45
            60
            80
            107
            134
            268
            449
            663
            750
            1170


            J41W stainless steel globe valve -4.0MPa


            尺寸
            DN
            15
            20
            25
            32
            40
            50
            65
            80
            100
            125
            150
            200
            250
            300
            350
            400
            L
            mm
            130
            150
            160
            180
            200
            230
            290
            310
            350
            400
            480
            600
            650
            750
            850
            950
            H
            mm
            200
            243
            253
            280
            312
            321
            325
            355
            415
            460
            510
            700
            975
            1115
            1250
            1380
            W
            mm
            120
            140
            160
            160
            200
            200
            240
            240
            280
            320
            360
            560
            600
            700
            800
            900
            重量
            kg
            5
            6.5
            7
            13.5
            16
            32
            45
            60
            80
            107
            134
            268
            491
            705
            850
            1234
