            TYFZ gas pressure regulating valve group

            TYFZ gas pressure regulating valve group
            • sell:021-32051999
            • sell:021-32050777
            • fax:021-66099555

            Details

            • Product Introduction
            • Service Promise
            • Ordering Process

            TYFZ type gas pressure regulating valve group is suitable for blast furnace system in ironmaking plant. By adjusting gas medium flow rate, the top pressure can be stabilized in a certain range. It is installed on the clean gas pipeline after the dust removal device (wet dust removal or dry dust removal). It is also applicable to other gas medium piping systems that require stable production through flow and pressure regulation.

            Structural features and uses

            The TYFZ type gas pressure regulating valve group is composed of ZAJW-1 type automatic regulating butterfly valve and constant pipe. Generally, one ZAJW-1 butterfly valve is used for automatic control by DDZ type electric unit combination instrument. The other two (or three) ZAJW-1 butterfly valves are made up of electric actuators which are controlled by manual operators on the instrument panel to adjust the flow and pressure of the system. . TYFZ type gas pressure regulating valve group is suitable for blast furnace system and other systems which need to keep stable production through flow and pressure regulation. There is no directional requirement when the valve group is installed on the horizontal pipe, but the normal through pipe should be placed below the valve group to ensure the discharge of condensate when the system temperature drops. When installing on the vertical pipe, the position of the electric actuator should be considered.

            Material of main parts


            零件名稱
            閥體
            閥板
            閥桿
            連接筒
            大小法蘭
            密封墊
            材料
            碳素鋼
            碳素鋼
            合金鋼
            碳素鋼
            碳素鋼
            石棉橡膠


            主要技術參能


            閥組型號
            介質溫度℃
            介質壓力MPa
            介質流量m3/h
            閥門轉角
            備注
            TYFZ-10
            ≤350
            -0.05
            -30000
            0-90°
            -
            TYFZ-30
            -0.07
            48000-58000
            0-90°
            -
            TYFZ-38
            -0.07
            68000-85000
            0-90°
            -
            TYFZ-65
            -0.1
            111000-130000
            0-90°
            -
            TYFZ-75
            -0.15
            137000-157000
            0-90°
            -
            TYFZ-90
            -0.2
            170000
            0-90°
            -
            TYFZ-100
            -0.2
            187000
            0-90°
            -
            TYFZ-125
            -0.25
            205000
            0-90°
            -
            TYFZ-135
            -0.25
            250500
            0-90°
            -


            自動調節閥配用電動裝置性能參數



            DN
            電動執行機構
            電源電壓力、輸入信號電流
            單程(90°) 啟閉時間
            型號
            輸出力矩
            250
            DKJ-210 或DKJ-210Q
            100N.m
            DDZ- II 型0-10mA DDZ III 型4-20mA 220V.AC
            25
            300
            25
            350
            DKJ-310或DKJ-310Q
            250N.m
            400
            25
            450
            600
            DKJ-410或DKJ-410Q
            600N.m
            25
            700
            800
            DKJ-510或DKJ-510Q
            1600N.m
            900
            25

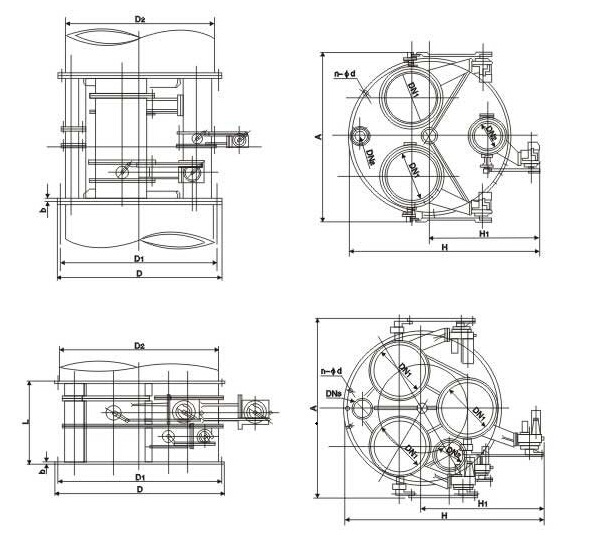

            主要外形連接尺寸


            閥組型號
            D
            D1
            L
            b
            n-Φd
            A
            A1
            H
            H1
            閥門配制
            許用流量(m3/h)
            重量
            對應管道
            TYFZ-25
            1990
            1930
            1000
            30
            44-Φ30
            3600
            1800
            2150
            1150
            600x2+300x1+150
            55000-65000
            2800
            1200
            TYFZ-30
            1990
            1930
            1000
            30
            44-Φ30
            3600
            1800
            2150
            1150
            700x2+300x1-150
            65000-77000
            3200
            1300
            TYFZ-40
            1990
            1930
            1000
            30
            44-Φ30
            3600
            1800
            2250
            1250
            700 χ 1+800 χ 1+350 χ+150
            77000-91000
            3400
            1400
            TYFZ-50
            2190
            2130
            1200
            30
            48-Φ30
            3800
            1900
            2600
            1500
            800x2+400x1+200
            91000-105000
            3700
            1500
            TYFZ-60
            2305
            2240
            1200
            30
            48-Φ30
            4000
            2000
            2800
            1600
            800 χ 1 +900 χ 1 +400 χ 1 +200
            105000-120000
            4900
            1600
            TYFZ-65
            2190
            2130
            1200
            30
            48-Φ30
            4000
            2000
            2800
            1600
            700x3+350x1+200
            111000-130000
            5000
            1700
            TYFZ-75
            2305
            2240
            1200
            30
            48-Φ33
            4000
            2000
            2800
            1600
            900x2+500x1+200
            120000-150000
            5300
            1800
            TYFZ-90
            2405
            2340
            1200
            30
            52-Φ 33
            4000
            2000
            2550
            1350
            800x3+400x1+250
            137000-170000
            6700
            1900
            TYFZ-100
            2605
            2540
            1200
            30
            56-Φ33
            4200
            2100
            3000
            1700
            1000x2+500x1+200
            150000-190000
            7000
            2000


            Instructions for ordering:

            1. Gas production per hour (flow rate), pressure, gas relative humidity (moisture content per m3) should be indicated in the order.

            2. the automatic adjustment butterfly valve input signal should be noted when ordering.

            3. vertical pipe installation and explosion-proof requirements for electric actuators are specified when ordering.

            The best quality, first-class service Qigao creates more value for you!

            "Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

            Product Standards:

            Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

            pre-sale service:

            Product introduction, technical exchange, non-standard product design, troubleshooting。

            Sale service:

            A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

            After sales service:

            1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

            2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

            3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

            4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

            1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

            a、Structure length;

            b、Connection Type;

            c、Nominal diameter, full diameter, reduced diameter, pipe size;

            d、Operating medium and temperature, pressure range;

            e、Tests, inspection standards and other requirements

            2、The factory can configure various types of driving devices according to customer's specific requirements.。

            3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

            4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



            Order Process:

            1、Customer purchase list fax to021-33872143,Or call us 021-33872141

            2、Receive customer purchase list, provide valve model selection and quotation (price list)。

            3、Specific agreement: delivery date, special requirements, etc.。
